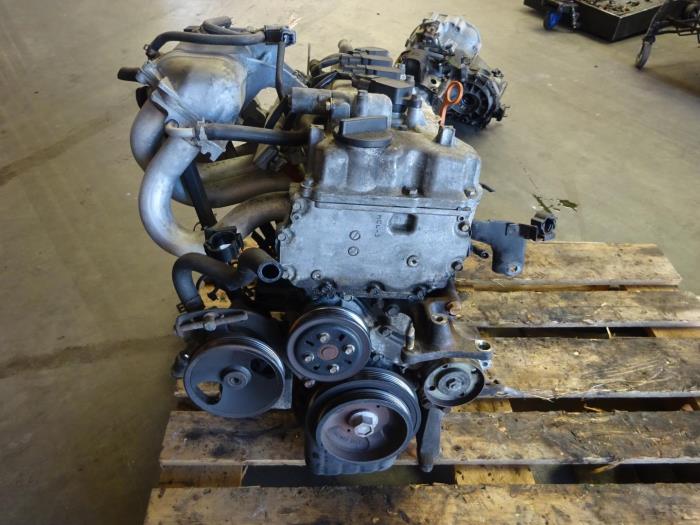

Nissan Almera 1.6L QG16 Engine

Description

Nissan Almera 1.6L QG16 Engine

The QG16DE is a 1.6 L (1,597 cc) straight 4-cylinder engine with double over head camshafts with 16 valves. The cylinder head also features Nissan Variable Cam Timing (N-VCT) and micro-polished camshafts.

A new water pump assembly has been designed for the QG16DE; the design is based on the water pump from the GA16DE, the changes made it more efficient and reliable than its predecessor. The engine produces 88 kW (118 hp) at 6000 rpm and 165 N⋅m (122 lb⋅ft) at 4000 rpm. Bore and stroke is 76 mm × 88 mm (2.99 in × 3.46 in).

Specifications

Displacement – 1.6 L (1,597 cc)
Layout – DOHC Inline-4 (Straight-4) with Nissan Variable Cam Timing
Valves – 16, 4 for each cylinder
Power – 118 hp (88 kW) at 6000 rpm
Torque – 122 lb⋅ft (165 N⋅m) at 4000 rpm
Redline – 6500 rpm
Fuel Delivery System – Electronic fuel injection (EFI)
Ignition system – 4 coils, 1 for each cylinder
Fuel Compression Ratio – 9.5:1
